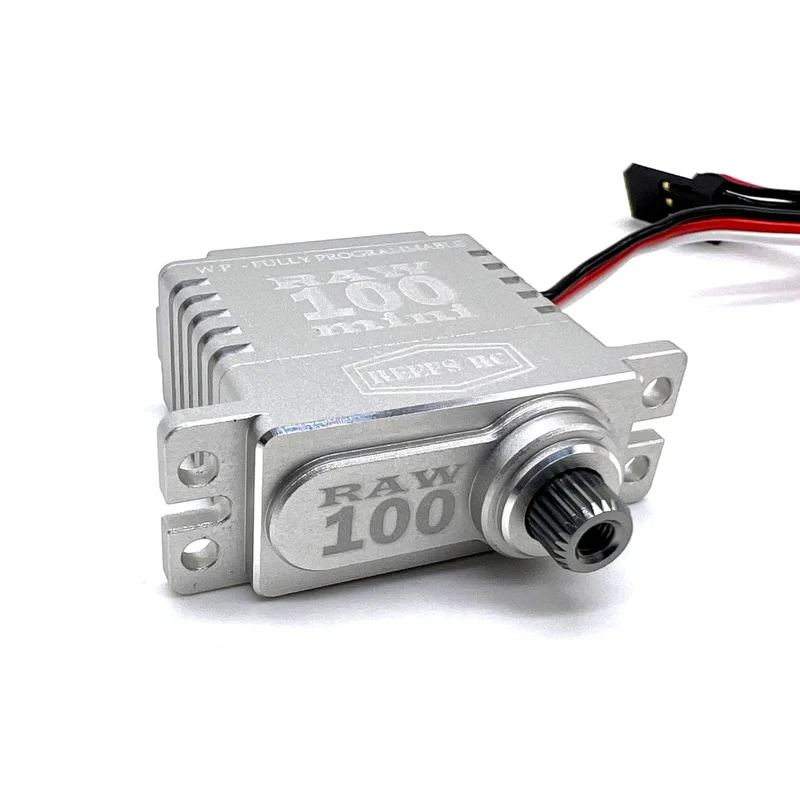

Reef’s RC REEFS134 RAW 100 Mini Servo

Description

This is a Reef’s RC REEFS134 RAW 100 Mini Servo. It Features: High Torque High Speed, Mini Coreless Servo, SUBMARINE WATERPROOF, Magnetic Angle Sensor, Pulse Width Modulation Control, & REEFS LINK required for Programming. Specs: Voltage: 6v-8.4v, All Metal Gears, CNC Aluminum Casing w/ Heat Sink, Bearing Type: 2BB, Temp Rate: -15C°~ +70C, Weight: 1.05oz / 30g, Dimension: (LWH) 1.16 x .55 x 1.14 in | 29.5 x 14 x 29 mm |, Torque: 85oz @ 6.0v | 95oz @ 7.4v | 103oz @ 8.4v, Speed: .11sec @ 6.0v | .10sec @ 7.4v | .08sec @ 8.4v, Spline: 25T Standard, Dead Band Width: 2¦Ìs, Unload Current: 180mA @ 4.8V | 200mA @ 6.0V | 230mA @ 7.4V | 260mA @ 8.4V, Load Current: 1200mA @ 4.8V | 1400mA @ 6.0V | 1500mA @ 7.4V | 1800mA @ 8.4V, BEC Not Required, Recommended for Max Perf.

Condition: Factory New
Operational Status: Functional
Original Box: Yes

Manufacturer: Reef’s RC
Model Number: REEFS134

Category 1: Control & Electrical – RC
Category 2: Control

The Trainz SKU for this item is P12627771.

Trainz Product Id: 12627771
